| ब्रांड नाम: | GENY |
| मॉडल संख्या: | YC1893R |
| एमओक्यू: | 1 टुकड़ा |
| कीमत: | बातचीत योग्य |
| भुगतान की शर्तें: | एल/सी, टी/टी |
| आपूर्ति करने की क्षमता: | प्रति माह 30 पीसी |
| Attribute | Value |
|---|---|
| Voltage | 3×240±15% |
| Frequency | 50 Hz ±15% |
| Power capacity | > 6 kVA |
| Power efficient (at full load) | ≥85% |
| Ambient temperature | -10 °C -- +40 °C |
| Relative humidity | 35% -- 85% |

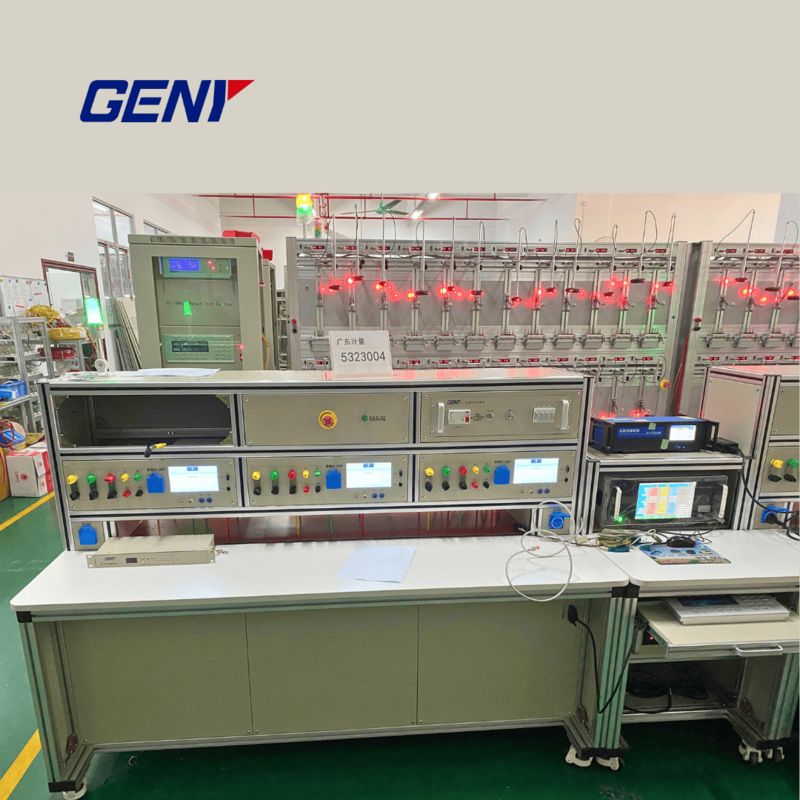

The test bench is multiple positions up to 3 meters, 0.02% of accuracy class Three-phase Meter Test System with ICTs, with multiple serial port communication system for parallel communication for testing of smart meters.
| Voltage | |
|---|---|
| Test voltage output (Phase-Neutral) | 3×(24 V - 480 V) or 600 V F-F customized |
| Power of the voltage output | 3×100VA |
| Resolution | Better than 0.01% of full scale value of range |
| Setting accuracy | Better than 0.02% at the final range value |
| Stability | Better than 0.005%/h (integration time 150 s) |
| Load regulation from 0-max. load | < 0.01% |
| Distortion factor | < 0.3% for linear resistance load |
| Harmonics | 2nd - 21st free programmable |
| Current | |
|---|---|
| Test current output | 0.3 mA - 120 A |
| Power of the current output | 3×150VA |
| Resolution | Better than 0.01% of full scale value of range |
| Setting accuracy | Better than 0.02% at the final range value |
| Stability | Better than 0.005%/h (integration time 150 s) |
| Load regulation from 0-max. load | < 0.01% |
| Distortion factor | < 0.3% for linear resistance load |
| Harmonics | 2nd - 21st free programmable |
| Additional Specifications | |
|---|---|
| Phase angle range | 0 - 360° |
| Phase angle resolution | 0.01° |
| Phase angle setting accuracy | 0.1° |
| Frequency range | 45 Hz - 65 Hz |
| Frequency resolution | 0.01 Hz |
