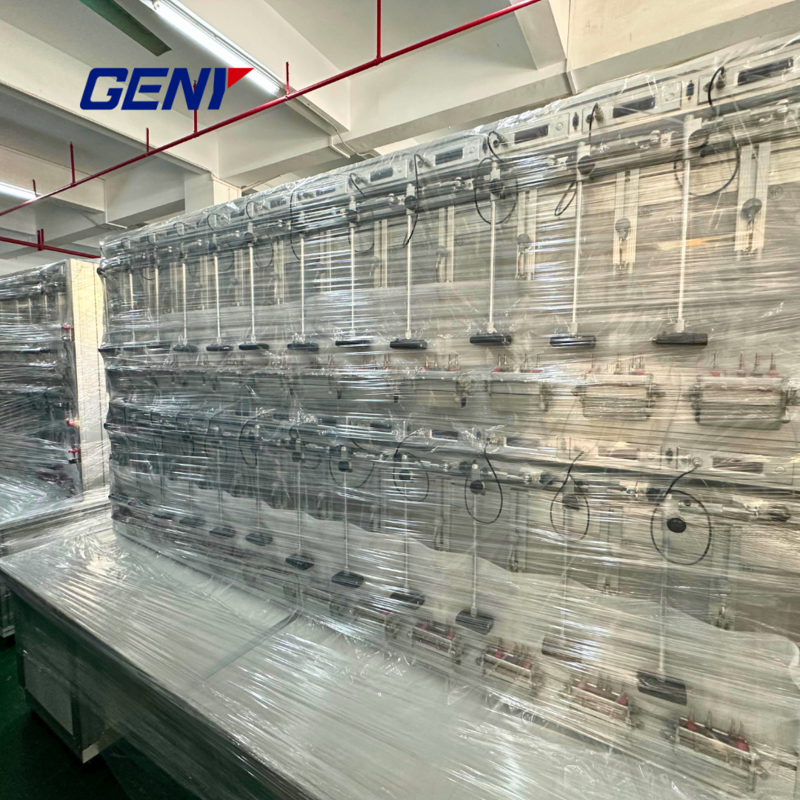

Meter Test Bench for Single Phase Energy Meters

Meter Test Bench for Single Phase Energy Meters

ब्रांड नाम:	GENY
मॉडल संख्या:	वाईसी-1891डी
एमओक्यू:	1 टुकड़ा
कीमत:	बातचीत योग्य
भुगतान की शर्तें:	एल/सी, टी/टी, डी/पी
आपूर्ति करने की क्षमता:	प्रति माह 30pcs

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

ISO, CE

दस्तावेज:

Single-phase meter test sys...em.pdf

आउटपुट करंट रेंज:

1MA -120A (230a अधिकतम तक)

आउटपुट वर्तमान शक्ति:

2000VA (अधिकतम)

निर्गम वोल्टेज शक्ति:

1000VA (अधिकतम)

आउटपुट वोल्टेज रेंज:

24V -288V

वोल्टेज आउटपुट: रेंज:

रेंज: 24V - 288V

वर्तमान आउटपुट रेंज:

1MA - 120A (अधिकतम 230 ए)

चरण समायोजन सीमा:

0 ° - 360 °

बिजली की आपूर्ति:

AC 220V, 10%, 50Hz of 2Hz

पैकेजिंग विवरण:

प्लाईवुड मामले

आपूर्ति की क्षमता:

प्रति माह 30pcs

प्रमुखता देना:

single phase energy meter tester

meter test bench equipment

stationary meter test bench

उत्पाद का वर्णन

Meter Test Bench for Single Phase Energy Meters

Advanced Testing Solution for Energy Meter Calibration

Our Meter Test Bench provides comprehensive testing capabilities for single-phase energy meters, ensuring accurate calibration and performance verification.

Key Features

Supports testing for: Active power, Reactive power, Active energy, Reactive energy
Start-up and creep tests with automatic calibration
Measures basic error, average error, standard deviation, and 24-hour variation
Comprehensive influence tests including voltage, frequency, harmonics (2nd-21st), and phase sequence
Simultaneous current measurements on the same meter rack
Test energy meters without disconnecting voltage or current circuits
Built-in protections: current open circuit and voltage short circuit
Integrated optical scanning head for improved operational efficiency
Dual operation modes: automatic and manual
PC software for automatic error data processing, storage, and real-time output
Data management with customizable report printing and barcode input
Configurable meter positions: from 3 up to 60 meters
Forward/reverse active and reactive energy error testing
Time base source SW-5D for measuring daily timing error
Communication test and broadcast time synchronization
Multiple verification methods: pulse counting, timing, or start-stop energy
Additional test capabilities: load switching, demand period, register indication, and more

Technical Specifications

General Specifications
Power Supply	AC 220V ±10%, 50Hz ±2Hz
Operating Temperature	-10°C to +40°C
Humidity Range	35% to 95%

Voltage Output
Range	24V - 288V
Maximum Output Power	1000VA
Resolution	0.01%
Stability	0.02% / 120s
Load Regulation	0.01%
Distortion	≤ 0.3% (within full linear load range)

Current Output
Range	1mA - 120A (max 230A)
Maximum Output Power	2000VA
Resolution	0.01%
Stability	0.02% / 120s
Load Regulation	0.01%
Distortion	≤ 0.3% (within full linear load range)
Continuous Current Capacity	100A
