Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

ब्रांड नाम: GENY
मॉडल संख्या: Yc1893d
एमओक्यू: 1 टुकड़ा
कीमत: बातचीत योग्य
भुगतान की शर्तें: एल/सी, टी/टी, डी/पी
आपूर्ति करने की क्षमता: प्रति माह 30 पीसी
विस्तार से जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
ISO, CE
दस्तावेज:
परीक्षण वर्तमान आउटपुट:
3 × (0.3ma - 20 ए)
वर्तमान आउटपुट की शक्ति:
3 × 1500VA
वोल्टेज आउटपुट की शक्ति:
3×1000VA
आवृति सीमा:
45 हर्ट्ज ∙ 65 हर्ट्ज
सेटिंग सटीकता:
अंतिम श्रेणी मूल्य पर 0.05% से बेहतर
स्थिरता:
0.005%/घंटा से बेहतर (एकीकरण समय 150 सेकंड)
पैकेजिंग विवरण:
प्लाईवुड मामले
आपूर्ति की क्षमता:
प्रति माह 30 पीसी
प्रमुखता देना:

24-Meter Positions Energy Meter Test Bench

,

60° Bevel Structure Stationary Meter Test Bench

,

0.05% Setting Accuracy Three-Phase Energy Meter Verification Bench

उत्पाद का वर्णन
Customizable Three-Phase Energy Meter Verification Bench
Customized Part

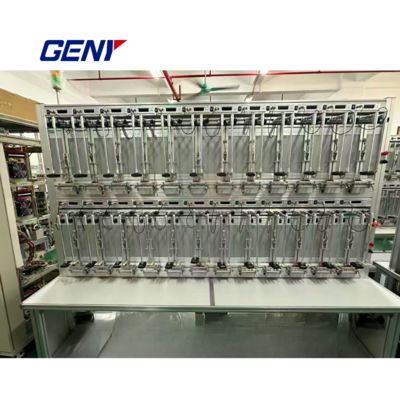

1. Automatic Suspension Test Rack
  • Three-phase 24-meter positions distributed on two sets of meter racks
  • Each rack has two rows arranged on one side with 6 positions per row
  • Equipped with rotatable mechanism
  • Suspension rack adopts 60° bevel structure (adjustable angle) relative to horizontal plane
Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy 0
  • Complete protection against direct and indirect electric shocks
Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy 1
  • Three-color indicator light on top of each rack
  • Automatic wiring function for each position
  • Fully automatic wiring and positioning capability
  • Stepping motor drives automatic wiring for each station
  • Near-infrared reading head and photoelectric head automatically align with meters
  • Automatic short-circuit function for each station
  • Automatic open circuit status checking with short circuit activation
Each meter position has customized QCD for Landis+Gyr meter models E650/E660/E850/E860:
Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy 2
Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy 3
A 24-port MOXA serial port server installed under the table-board provides meter communication capability for simultaneous automatic calibration.
Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy 4
Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy 5
