| ब्रांड नाम: | GENY |
| मॉडल संख्या: | Yc1893d |
| एमओक्यू: | 1 |
| कीमत: | negotiate rates |
| भुगतान की शर्तें: | टी/टी, एल/सी, डी/पी, टी/टी |
| आपूर्ति करने की क्षमता: | 5 सेट / 1 महीने |

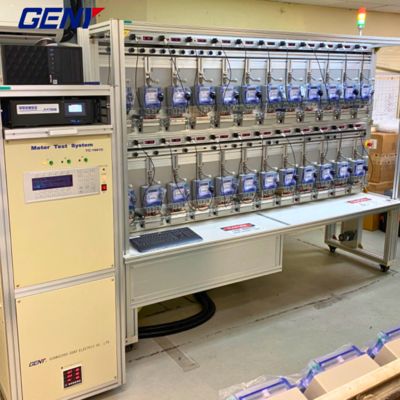

| Technical spec. | YC1893D-ICT-6 | YC1893D-ICT-12 | YC1893D-ICT-24 | YC1893D-ICT-48 |
|---|---|---|---|---|
| Number of meter positions equipped ICT | 6 | 12 | 24 | 48 |
| Accuracy class of ICT | 0.05 / 0.01 | |||
| Accuracy | 0.05 | |||
| Power Source | YCS-103-250 | YCS-103-600 | YCS-103-1200 | YCS-103-2500 |
| Standard Meter | SZ03A-K6 / SZ03A-K8 (customized) | |||
| Scanning Head | YCG-S Series | |||
| Voltage | ||||
| Test voltage output(Phase-Neutral) | 3x(24V~288V)(or customized) | |||
| Power of the voltage output | Max. 3x100VA | Max. 3x250VA | Max. 3x500VA | Max. 3x1000VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005% /h (integration time 150s) | |||
| Load regulation from 0~max. load | Better than 0.01% | |||
| Distortion factor | Better than 0.3% for linear resistance load | |||
| Harmonic | 2nd~21st free programmable | |||
| Current | ||||
| Test current output | 3x(1mA~100A) | |||
| Power of the current output | Max. 3x150VA | Max. 3x350VA | Max. 3x750VA | Max. 3x1500VA |
| Phase angle | 0~360⁰ | |||
| Frequency | 45Hz~65Hz | |||
| Voltage supply | 3x220/380V±10%(or customized) 50/60Hz ±2Hz | |||
| Ambient temperature | -10°C~+40°C | |||
| Relative humidity | 35%~85% | |||
