YCS-103 Three-Phase Power Source for Energy Meter Testing

ब्रांड नाम:	GENY
मॉडल संख्या:	वाईसीएसएस-103
एमओक्यू:	1
कीमत:	negotiate rates
भुगतान की शर्तें:	टी/टी, एल/सी, डी/पी, टी/टी
आपूर्ति करने की क्षमता:	10 पीसी / 1 महीने

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

ISO, CE

दस्तावेज:

Catalogue——Meter Test S...m..pdf

सेटिंग सटीकता:

अंतिम श्रेणी मूल्य पर 0.05% से बेहतर

स्थिरता:

0.005%/घंटा से बेहतर (एकीकरण समय 150s)

विरूपण कारक:

रैखिक प्रतिरोध लोड के लिए 0.3% से बेहतर

हार्मोनिक्स:

2 - 21 वीं नि: शुल्क प्रोग्रामेबल

वोल्टेज आपूर्ति:

3×220/380V±10% या अनुकूलित 50/60Hz±2Hz

परीक्षण वर्तमान आउटपुट:

3×(1mA – 100A)

पैकेजिंग विवरण:

प्लाईवुड केस

आपूर्ति की क्षमता:

10 पीसी / 1 महीने

प्रमुखता देना:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

उत्पाद का वर्णन

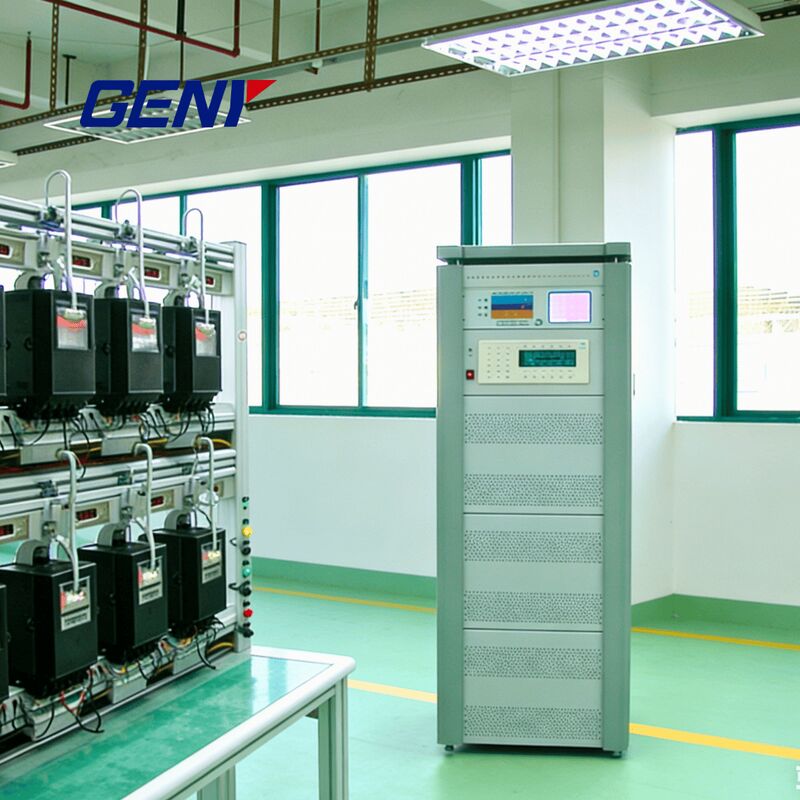

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards

Typical Applications
