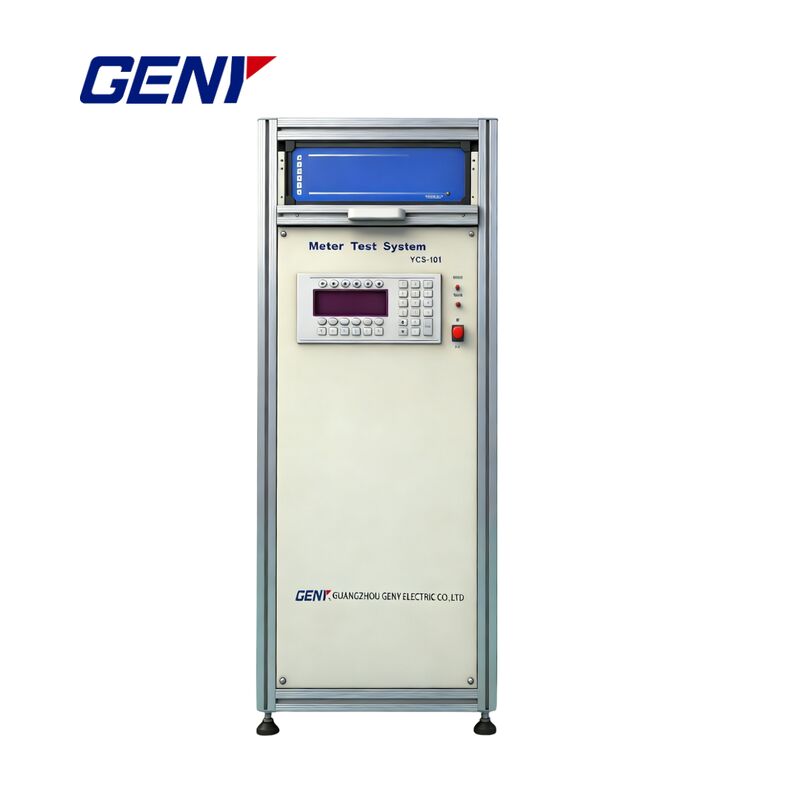

Three-Phase Stationary Power Source for Power Utilities and Meter Manufacturers

ब्रांड नाम:	GENY
मॉडल संख्या:	वाईसीएसएस-103
एमओक्यू:	1
कीमत:	negotiate rates
भुगतान की शर्तें:	टी/टी, एल/सी, डी/पी, टी/टी
आपूर्ति करने की क्षमता:	10 पीसी / 1 महीने

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

ISO, CE

दस्तावेज:

Catalogue——Meter Test S...m..pdf

Input Voltage:

3 × 220 V / 380 V ±10% or customized

Frequency:

50 / 60 Hz ±2 Hz

Ambient Temperature:

–10 °C to +40 °C

Relative Humidity:

35% – 85% (non-condensing)

पैकेजिंग विवरण:

प्लाईवुड केस

आपूर्ति की क्षमता:

10 पीसी / 1 महीने

प्रमुखता देना:

three-phase stationary power source

stationary power source for utilities

power source for meter manufacturers

उत्पाद का वर्णन

Three-Phase Stationary Power Source for Power Utilities and Meter Manufacturers

High-Accuracy Three-Phase Stationary Power Source

Professional-grade power source designed specifically for power utilities and meter manufacturers, delivering exceptional accuracy and reliability for testing applications.

Key Features

High accuracy with excellent long-term output stability
RS232 communication interface supporting automated operation
Optional built-in keyboard for convenient manual operation
Harmonics from 2nd to 21st order freely programmable in amplitude and phase angle
Rugged aluminum alloy enclosure: lightweight, high strength, and corrosion-resistant
User-friendly PC control software for easy operation and system integration
Comprehensive protection functions including overload, short-circuit voltage, and open-circuit current protection

Technical Specifications

Voltage Output

Parameter	Specification
Test Voltage (Phase-Neutral)	3 × (24 V - 288 V) or customized
Voltage Output Power	3 × 100 VA, 3 × 250 VA, 3 × 500 VA, 3 × 1000 VA
Resolution	Better than 0.01% of full-scale range
Setting Accuracy	Better than 0.05% of final range value
Stability	Better than 0.005%/h (integration time: 150 s)
Load Regulation (0 to Max Load)	< 0.01%
Distortion Factor	< 0.3% (linear resistive load)
Harmonics	2nd - 21st, freely programmable

Current Output

Parameter	Specification
Test Current Range	3 × (1 mA - 100 A)
Current Output Power	3 × 150 VA, 3 × 350 VA, 3 × 750 VA, 3 × 1500 VA
Resolution	Better than 0.01% of full-scale range
Setting Accuracy	Better than 0.05% of final range value
Stability	Better than 0.005%/h (integration time: 150 s)
Load Regulation (0 to Max Load)	< 0.01%
Distortion Factor	< 0.3% (linear resistive load)
Harmonics	2nd - 21st, freely programmable
