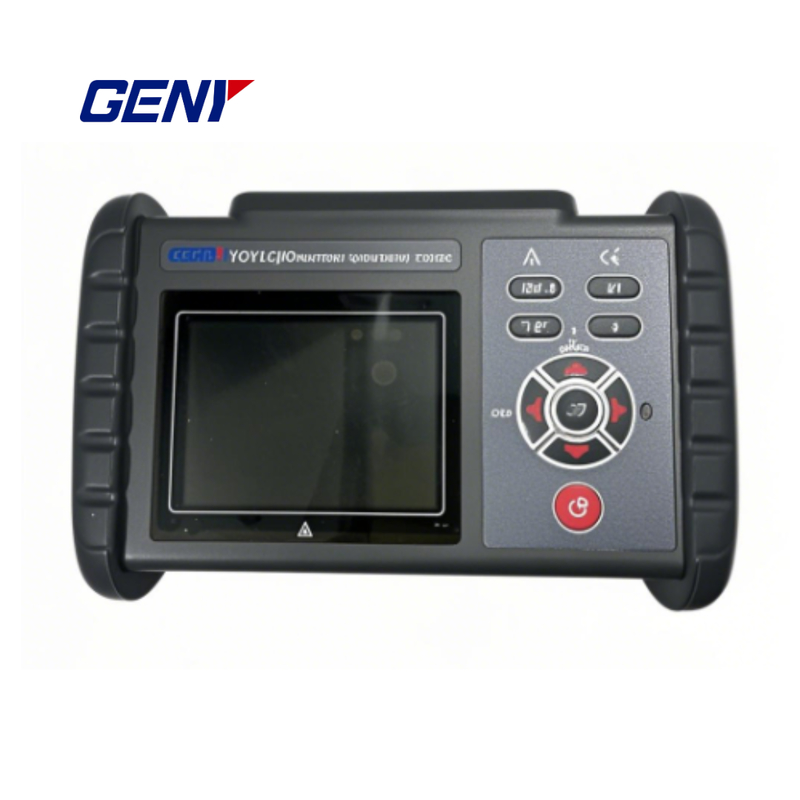

YCRT-I370 Battery Internal Resistance Tester

YCRT-I370 Battery Internal Resistance Tester

ब्रांड नाम: GENY
मॉडल संख्या: वाईसीआरटी-आई370
एमओक्यू: 1
कीमत: negotiate rates
भुगतान की शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति करने की क्षमता: 30 पीसी/ 1 महीने
विस्तार से जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
ISO, CE
सटीकता की गारंटी तापमान और आर्द्रता:
23℃±5℃, 75%rh से नीचे
बिजली की आपूर्ति:
डीसी 3.7V लिथियम बैटरी
बिजली की खपत:
300mA न्यूनतम / 500mA अधिकतम
भंडारण तापमान और आर्द्रता:
-20℃~60℃;70%आरएच से नीचे
कार्य तापमान और आर्द्रता:
-10℃~40℃;80%आरएच से नीचे
पैकेजिंग विवरण:
प्लाईवुड केस
आपूर्ति की क्षमता:
30 पीसी/ 1 महीने
प्रमुखता देना:

16-bit ADC Battery Tester

,

3.5-inch LCD Resistance Tester

,

IEC 61010 Battery Internal Resistance Tester

उत्पाद का वर्णन
YCRT-I370 Battery Internal Resistance Tester
Key Features
  • Utilizes AC 4-terminal test method for accurate measurements unaffected by contact resistance
  • 16-bit ADC for precise detection of internal resistance, voltage, and temperature
  • Wide measurement ranges: 0.000mΩ-3.100Ω (resistance), 0.000V-±122.0V (voltage), -10.0℃-60.0℃ (temperature)
  • 3.5-inch 16-bit true color LCD (320*240 resolution) for clear data visualization
  • Bluetooth and USB connectivity for wireless data transfer to PCs/smart devices
  • Noise frequency avoidance function for stable UPS battery measurements
  • Compliant with IEC 61010 safety standards
  • Built-in storage with 10 memory banks (500 datasets each)
  • Portable design (190*121*51mm, 480g) with 4-8 hours battery life
Core Functions
  • Measures internal resistance, voltage, and temperature of rechargeable batteries (lead-acid, lithium, etc.)
  • Real-time histogram display for batch battery health analysis
  • Customizable PASS/WARNING/FAIL judgment thresholds
  • Manual or automatic range shifting for resistance and voltage measurements
  • Data storage and retrieval via USB/Bluetooth with dedicated software
  • Temperature measurement via external NTC sensor (10kΩ at 26°C)
  • Low-battery warning and automatic shutdown features
  • Noise frequency identification mode for stable measurements in high-interference environments
Technical Specifications
Function Battery internal resistance measurement, battery voltage measurement, temperature measurement
Accuracy Conditions 23℃±5℃, Below 75% RH
Power Supply DC 3.7V lithium battery
Resolution Resistance: 1μΩ | Voltage: 1mV | Temperature: 0.1℃
Measuring Ranges Internal resistance: 0.000mΩ~3.100Ω (4 ranges)
Voltage: 0.000V~±122.0V (2 ranges)
Temperature: -10.0℃~60.0℃
Measurement Method 1KHz AC 4-terminal test method (3V max open-circuit voltage)
Display 3.5-inch 16-bit true color LCD (320*240 resolution)
Connectivity USB interface and Bluetooth
Dimensions 190mm * 121mm * 51mm
Weight 480g (including battery)
Safety Compliance IEC 61010
