BLE-IR Optical Probe

BLE-IR Optical Probe

ब्रांड नाम: GENY
मॉडल संख्या: ब्लूटूथ 5.3 बीएलई/टाइप-सी
एमओक्यू: 1
कीमत: negotiate rates
भुगतान की शर्तें: टी/टी, एल/सी, डी/पी, टी/टी
आपूर्ति करने की क्षमता: 10 पीसी / 1 महीने
विस्तार से जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
ISO, CE
संचार इंटरफेस:
ब्लूटूथ 5.3 बीएलई/टाइप-सी
बैटरी सुविधा:
3.7V/130mAh
पैकेजिंग विवरण:
प्लाईवुड केस
आपूर्ति की क्षमता:
10 पीसी / 1 महीने
प्रमुखता देना:

BLE-IR optical probe meter accessory

,

infrared optical probe for testing

,

optical probe with BLE connectivity

उत्पाद का वर्णन

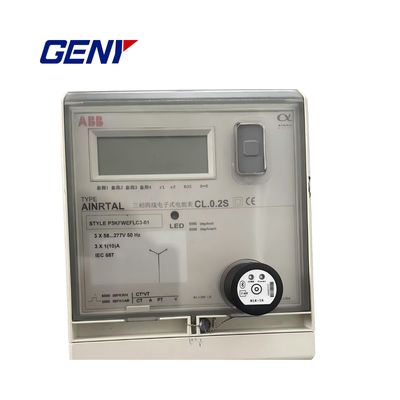

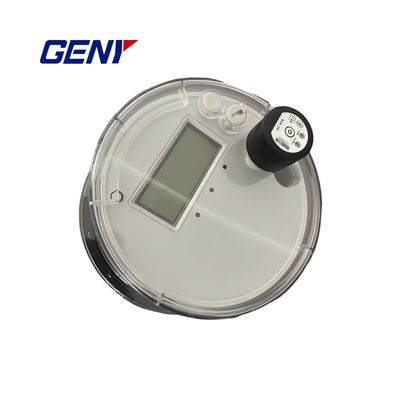

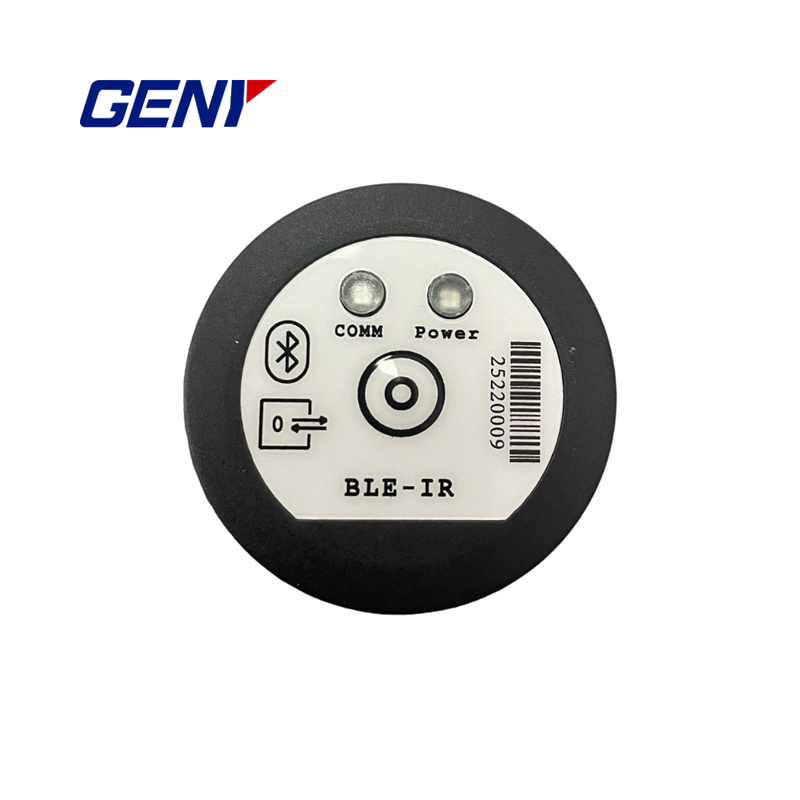

BLE-IR Optical Probe
Technical Specifications
Items Features
Communication Interface Bluetooth 5.3 BLE / Type-C
Transparent Communication Mode IEC 62056-21 Mode C / Mode E / User Mode ANSI C12.18 / ANSI C12.18-2006 type2
Smart Communication Mode IEC 62056-21 Mode C / Mode E
Battery Feature 3.7V / 130mAh
Battery Charging Time 2 Hours-TypeC (Supported PD Fast Charge, 30m ≥ 80%)
Duration of communication ~ 10 hours
Standby Time ~ 60 days
Maximum B.R. 115200
Sensor Light Wave Length ~ 940 nm
USB2.0 to Type-C Cable length 1M in normal and 1.5M/2M/3M for option
Fastening Strong magnetic adhesion (Exceeding IEC62056-21 standard, tensile force ≥ 10N)
Magnet material N45 / N52 (Optional)
Mechanical Impact PBT+GF housing
Diameter & Height Optical port 32mm Diameter / H23mm
Weight 35 gr
Enclosure Material PBT+GF
Protection Class IP 51
BLE-IR Optical Probe 0 BLE-IR Optical Probe 1 BLE-IR Optical Probe 2
